WBTU1075-E LED Emergency Walkway Light
Port emergency walkway lighting · 10W · IP66 · built-in battery · lighting during power outage >90 min
Port emergency walkway lighting · 10W · IP66 · built-in battery · lighting during power outage >90 min
Based on the WBTU1075-N standard version, this model includes a built-in high-energy battery. It charges automatically during normal power supply and switches automatically to emergency lighting mode after power loss, providing continuous lighting for >90 minutes and meeting fire emergency code requirements. Other specifications are the same as the standard version.
| Luminaire Description | LED Emergency Walkway Light |
| Model | WBTU1075-E |
| Rated Voltage | AC 220V - 240V |
| Luminaire Power | 10W（±10%） |

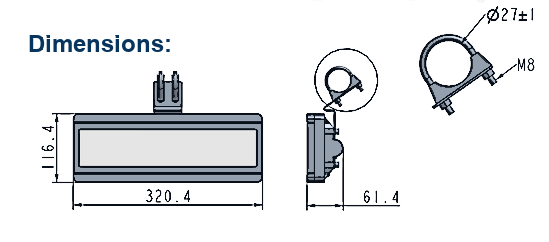

| Overall Dimensions | 320.4 × 116.4 × 61.4 mm |
| Material | Die-cast aluminum |
| Protection Rating | IP66 |
| Operating Temperature | -40℃ ~ +85℃ |
| Mounting Method | Clamp type |
| Mounting Pipe Diameter | φ27 mm (customizable) |
| Luminaire Cable Length | 1500 mm (customizable) |
| Power Cable Specification | 4×1mm², outer diameter 8mm |
| Cable Outlet | Bottom outlet (C) / left-right outlet (A/B) |
| Color Temperature Range | 2700K ~ 6500K (optional) |
| Color Rendering Index (Ra) | ≥80 |
| Color Tolerance (SDCM) | <7 |
| Beam Angle | 60° × 160° |
| Luminaire Efficacy | ≥100 lm/W |
| Luminaire Lifetime | 50000 h |
| Input Voltage | AC 220V - 240V |
| LED Brand | Tongyifang / OSRAM / LUMILEDS (optional) |
| LED Driver | Igor |
| Power Factor | ≥0.9 |
