WBTU1075-N LED Walkway Light
Port walkway lighting · 10W · IP66 · clamp mounting
Port walkway lighting · 10W · IP66 · clamp mounting
The lamp body uses high-quality die-cast aluminum with high-tech coating for corrosion resistance and durability. The 60°×160° asymmetric light distribution is especially suitable for narrow-area lighting such as port corridors and stair entrances. IP66 protection, easy clamp mounting, first-tier LED light source, luminous efficacy ≥100 lm/W, and low 10W power consumption.
| Luminaire Description | LED Walkway Light |
| Model | WBTU1075-N |
| Rated Voltage | AC 220V - 240V |
| Luminaire Power | 10W（±10%） |

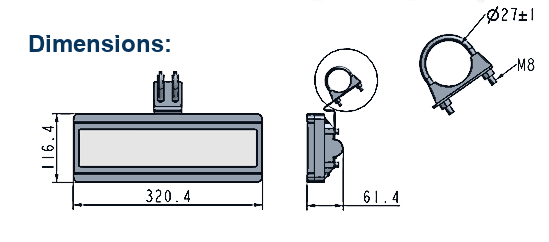

| Overall Dimensions | 320.4 × 116.4 × 61.4 mm |
| Material | Die-cast aluminum |
| Protection Rating | IP66 |
| Operating Temperature | -40℃ ~ +85℃ |
| Mounting Method | Clamp type |
| Mounting Pipe Diameter | φ27 mm (customizable) |
| Luminaire Cable Length | 1500 mm (customizable) |
| Power Cable Specification | 3×1mm², outer diameter 7mm |
| Cable Outlet | Bottom outlet (C) / left-right outlet (A/B) |
| Color Temperature Range | 2700K ~ 6500K (optional) |
| Color Rendering Index (Ra) | ≥80 |
| Color Tolerance (SDCM) | <7 |
| Beam Angle | 60° × 160° |
| Luminaire Efficacy | ≥100 lm/W |
| Luminaire Lifetime | 50000 h |
| Input Voltage | AC 220V - 240V |
| LED Brand | Tongyifang / OSRAM / LUMILEDS (optional) |
| LED Driver | Igor |
| Power Factor | ≥0.9 |
