WBTU1085-N port Floodlights
medium power port lighting · 150W / 200W · F2 corrosion protection · IP66
medium power port lighting · 150W / 200W · F2 corrosion protection · IP66
Compact aluminum lamp body with efficient heat-sink design. Uses first-tier LEDs (CREE / OSRAM / LUMILEDS optional), luminous efficacy ≥130 lm/W, and precise 30° narrow-beam floodlighting. IP66 protection and F2 corrosion protection. The power supply is a first-tier isolated driver with 97% conversion efficiency. The lamp body includes a safety lanyard, and the bracket precision adjustment plate is adjustable from 0° to 90°. Passed 5G vibration testing and is suitable for high-vibration port environments.
| Luminaire Description | Port Floodlight |
| Model | WBTU1085-N（150W）/ WBTU1048A-N（200W） |
| Rated Voltage | AC 220V - 240V |
| Luminaire Power | 150W / 200W（±10%） |

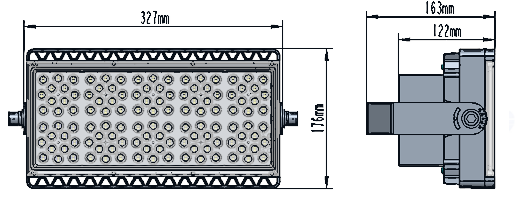

| Overall Dimensions | 320 × 176 × 188.5 mm |
| Material | Die-cast aluminum |
| Protection Rating | IP66 |
| Vibration Level | 5G |
| Corrosion Protection Grade | F2（C5-M） |
| Mounting Method | Wall mounting |
| Surge Protector | 10KV (optional) |
| Operating Temperature | -40℃ ~ +85℃ |
| Color Temperature Range | 2700K ~ 6500K (optional) |
| Color Rendering Index (Ra) | ≥70 |
| Color Tolerance (SDCM) | <7 |
| Beam Angle | 30° |
| Luminaire Efficacy | ≥130 lm/W |
| Luminaire Lifetime | 50000 h |
| Input Voltage | AC 220V - 240V |
| LED Brand | CREE / OSRAM / LUMILEDS (optional) |
| LED Driver | Mean Well (other brands can be specified) |
| Power Factor | ≥0.9 |
| Surge Protector | 10KV (optional) |
| Cable Outlet | Lower left (A) / lower right (B) / lower left and right (A+B) |
