WBTU1085- PLC port PLC Floodlights

intelligent dimming version · 150W / 200W · F2 corrosion protection · IP66 · 0-10V dimming

← Back to Port Machinery Product List
WBTU1085- PLC port PLC Floodlights
Product Dimensions

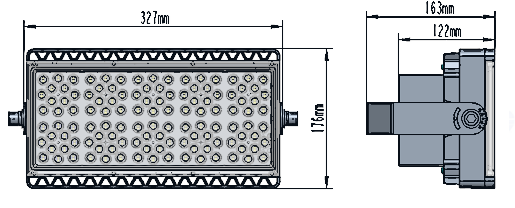

Dimension Drawing
🚢 port machinery · Floodlights
Model: WBTU1085-PLC (150W)/ WBTU1048A-PLC (200W)

Port PLC Floodlight

Adds 0-10V dimming based on WBTU1085-N and supports connection to PLC intelligent control systems
150W / 200W IP66 F2 corrosion protection 0-10V dimming 5G vibration
150W
Rated Power
≥130
Efficacy lm/W
30°
Beam Angle
IP66
Protection Rating
0-10V
Dimming Interface
50000h
Design Lifetime
Get a Quote View Standard Version →
📡
PLC Dimming Notes
⚡ Dimming Interface Notes
This product supports 0-10V dimming, enabling stepless brightness adjustment.
Luminaire itselfPLC controller not included. To connect to a port PLC intelligent lighting gateway, customers can install the PLC control module in the rear driver housing of the luminaire.

Used with the intelligent lighting gateway (model MK41000106) and PLC touch scene switch (model MK41000107), it enables remote centralized control, scene linkage, and energy management for port lighting.

✦
Product Features

Built on the same platform as WBTU1085-N, this version adds PLC dimming and supports 0-10V analog dimming and PLC remote control. Other specifications are the same.

📋
Basic Luminaire Parameters
Luminaire DescriptionPort PLC Floodlight
ModelWBTU1085-PLC（150W）/ WBTU1048A-PLC（200W）
Rated VoltageAC 220V - 240V
Luminaire Power150W / 200W（±10%）
Overall Dimensions320 × 176 × 188.5 mm
MaterialDie-cast aluminum
Protection RatingIP66
Vibration Level5G
Corrosion Protection GradeF2（C5-M）
Mounting MethodWall mounting
Surge Protector10KV (optional)
Operating Temperature-40℃ ~ +85℃
💡
Optical Parameters
Color Temperature Range2700K ~ 6500K (optional)
Color Rendering Index (Ra)≥70
Color Tolerance (SDCM)<7
Beam Angle30°
Luminaire Efficacy≥130 lm/W
Luminaire Lifetime50000 h
⚡
LED and Control Gear Parameters
Input VoltageAC 220V - 240V
LED BrandCREE / OSRAM / LUMILEDS (optional)
LED DriverMean Well (other brands can be specified)
Power Factor≥0.9
Dimming Method0-10V dimming
Surge Protector10KV (optional)
Note:This product does not include a PLC controller. If needed, customers can install the PLC control module in the rear driver housing of the luminaire.
