WBS200-208 Ultrasonic Wind Speed and Direction Sensor

Wind Monitoring · integrated wind speed/direction / ultrasonic / special · Shanghai Webo Electric

WBS200-208
💨 Wind Monitoring · integrated wind speed/direction / ultrasonic / special
Model: WBS200-208

Ultrasonic Wind Speed and Direction Sensor

The ultrasonic wind speed and direction instrument is convenient, accurate, and flexible for many fields. It is widely used in urban environmental monitoring, meteorological monitoring, bridges and tunnels, metro systems, tunnels and mining, fan manufacturing, and other industries that require ventilation and exhaust systems.
12~24VDC
Operating Voltage
0~50m/s
Measurement Range
PC
Material
Product Overview

The ultrasonic wind speed and direction sensor uses the ultrasonic time-difference method to measure wind speed and direction. It offers high measurement accuracy, reliable performance, easy portability, and no moving parts. Under normal conditions, it requires no maintenance or on-site calibration, making it an advanced instrument for wind speed and direction measurement. Because it overcomes the inherent defects of mechanical wind speed and direction instruments, it can operate normally for long periods in all weather and is being used increasingly widely. It is a strong replacement for mechanical wind speed and direction instruments.

Product Features
  • Multiple ultrasonic probes transmit and receive ultrasonic signals in real time within the measurement space, ensuring efficient real-time parameters.
  • High measurement accuracy, wide range, strong stability, low power consumption, strong interference resistance, all-weather operation, and no calibration required.
  • Precision workmanship provides high strength, weather resistance, waterproofing, and long service life.
  • Professional integrated mounting method, compact size, easy to carry and install.
📋
Performance Specifications
Measurement Range0~50m/s (other ranges require customization)Response Time<3s
Starting Wind Speed0.1m/sResolution0.1m/s
Accuracy±0.3m/s or ±3%(0~30m/s) or ±5%(30~50m/s) whichever is greater
Measurement Range0~360°Response Time±2 °
Starting Wind Speed0.1m/sResolution0.1 °
digital signalRS485Operating Current<35mA(12VDC)
Analog Signal0~5/0~10V or 4~20mAOperating Temperature-20℃~60℃
Baud Rate2400~115200Operating Humidity0%~95%RH
Supply Voltage12~24VDCProtectionIP65
📖

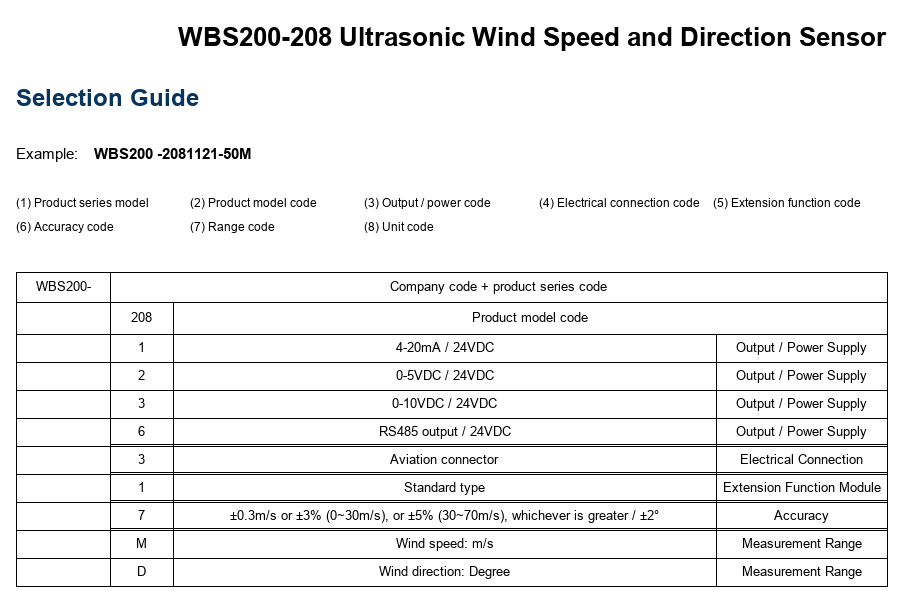

Selection Guide
Selection Guide
